D-202SS

Description

  • Aluminum die-casting lamp body shell, super white tempered glass, special shape design, 2 sizes available
  • High light transmission PC lens, a variety of optical components are optional, with high visual comfort and anti glare effect
  • High performance LED chip, ON-OFF ／ 0-10V ／ DALI ／ programming power supply option, 20KV surge protector
  • Lamps have different support options, which can be selected and applied in different places according to needs
  • Anti ultraviolet polyurethane plastic powder spraying surface, corrosion resistance can reach more than 1000 hours
  • No biological blue light hazard risk, symbol EN62471:2008 standard
  • All external screws are made of 304 stainless steel
Lamp power: 30-150W
Output lumen:  4350-21800LM
Number of size: : 6 size versions for selection
Color temperature option: 3000K/4000K
IP grade:  IP66
IK level: IK08
Installation pipe diameter: Ø48/Ø60mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Application

Technology data

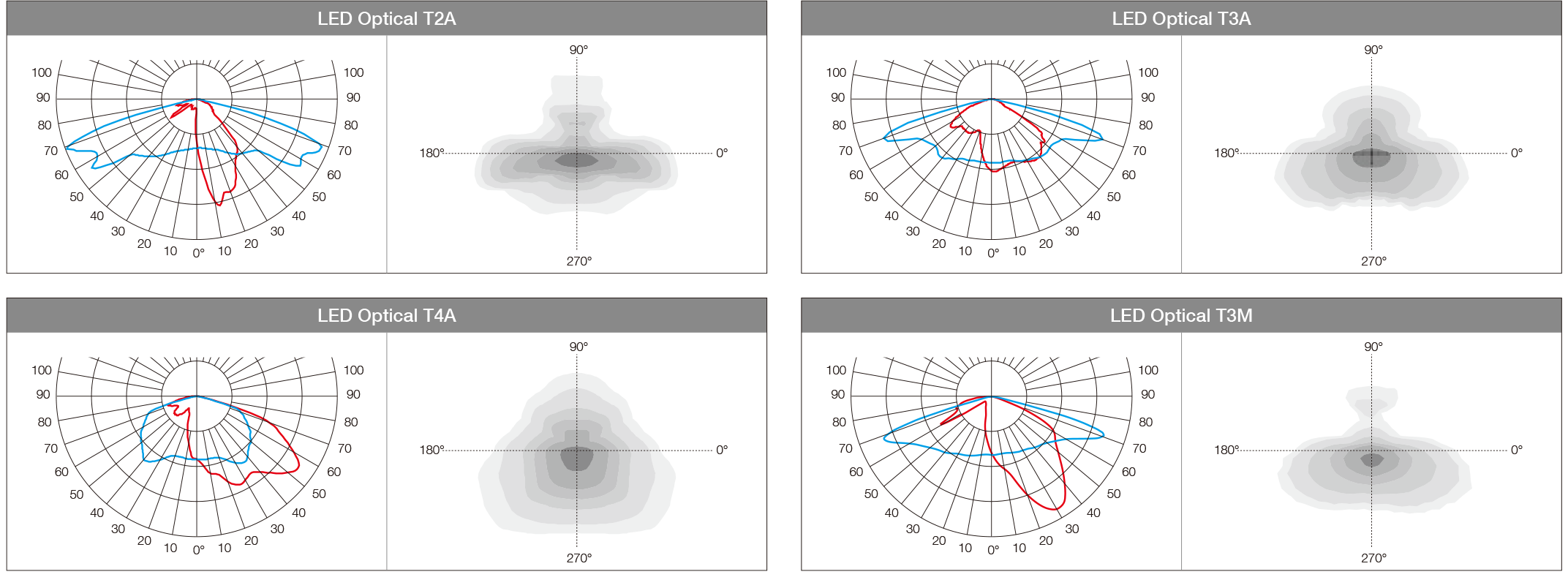

Optical application
