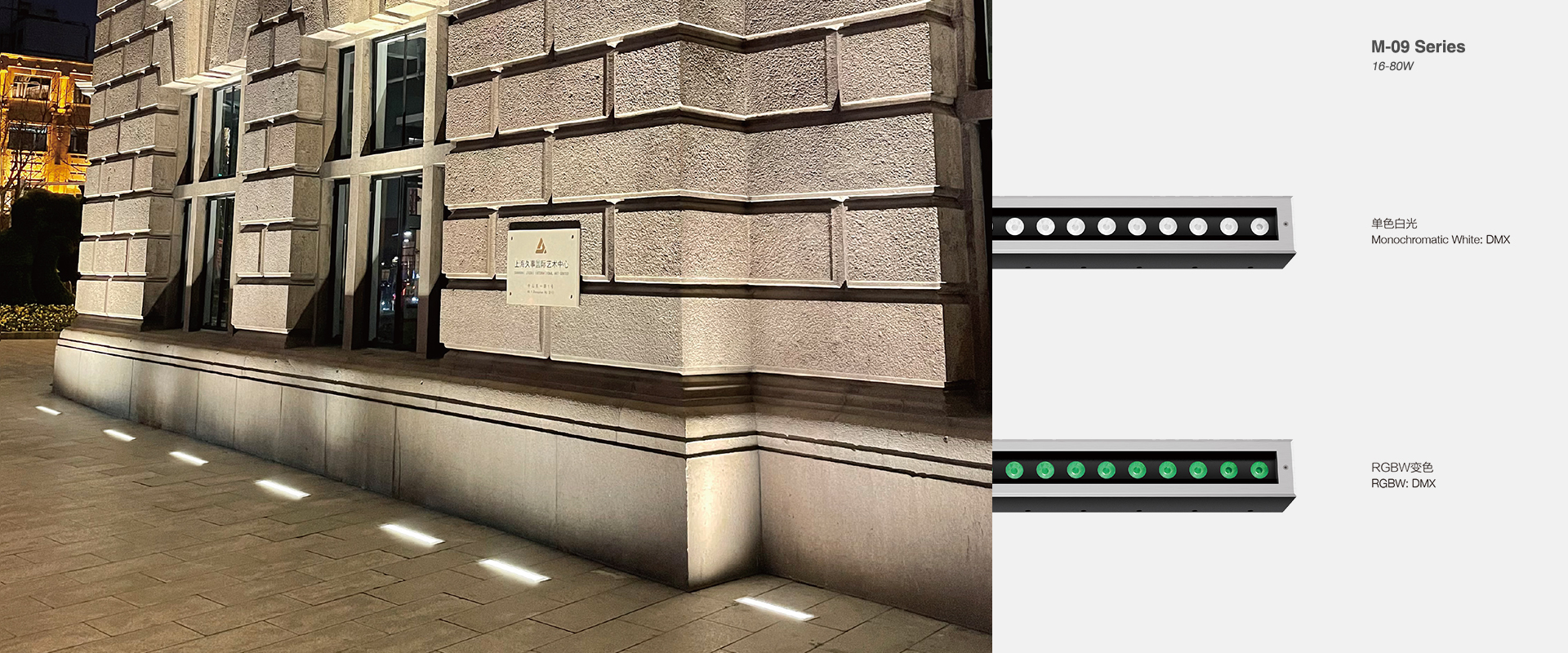

M-09 Led Outdoor Lighting

Description

  • Extrued aluminium body, die-casting side cover which complete with silicone gaskets.
  • 304 stainless steel decorative panel and install housing box, the static load of the luminaire can resistance 5000kg.
  • Super white tempered glass, with high visual comfort and uniform lighting distribution.
  • Multiple optics be options, suitable for lighting requirements in different applications.
  • The maximum surface temperature of all contact temperature <50℃ for safety and reliable.
  • All external screw are made of 304 stainless steel.
  • The luminaire technical characteristics conform to EN60598-1 standards.

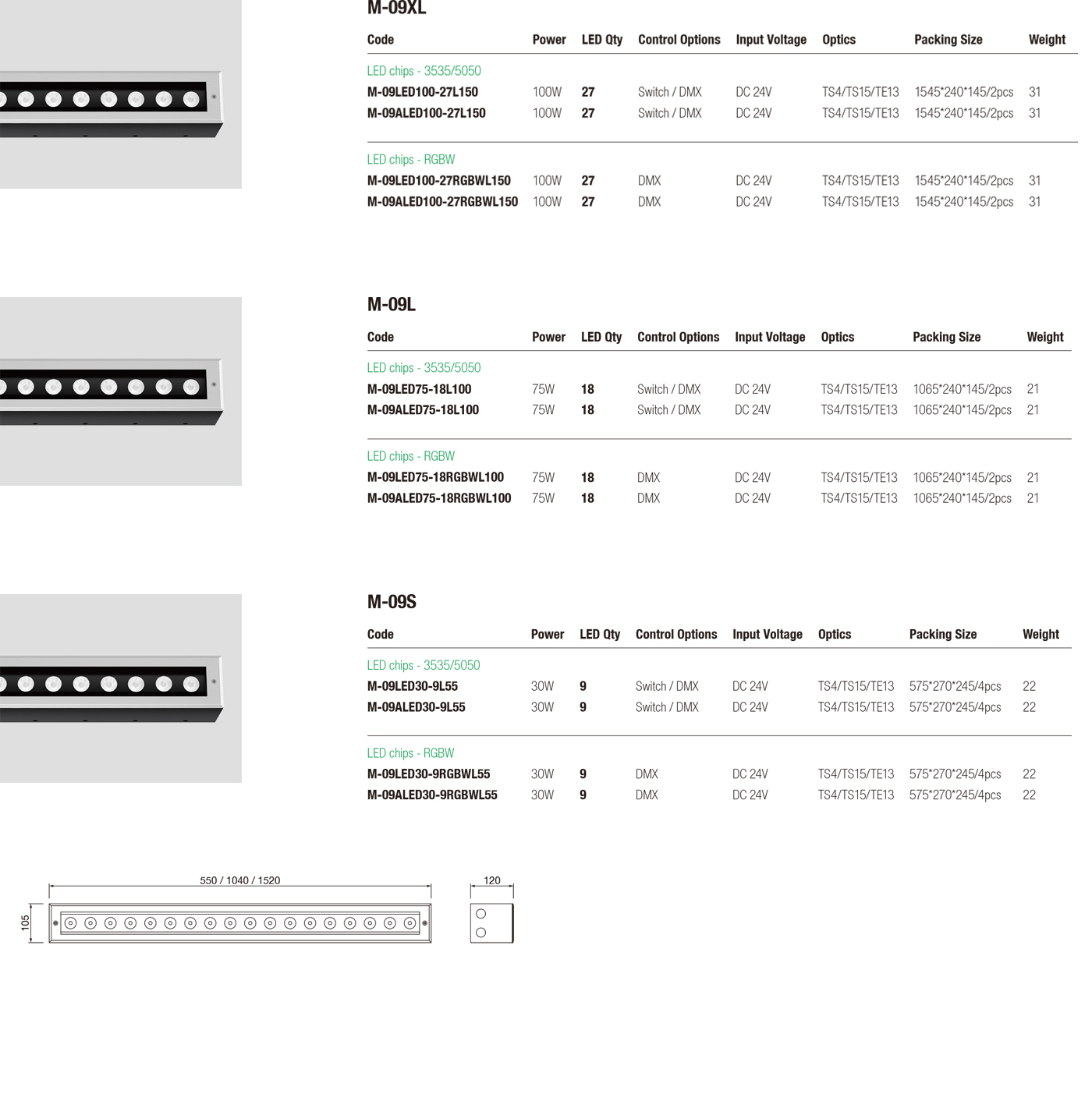

Power: 16W-80W
Light flux LM: 1600-8000LM
Nominal efficacy: 90-100 Lm/W (Ra80)
CCT: 2700K/3000K/4000K/RGBW
Options: Switch/DMX
Input volltage: AC 220V/DC 24V
Installation method： Celling-mounted/Wall-mounted
Lengths (range cm) 325mm/560mm/1060mm
