Home / Product / Street Lighting / Residential Lighting / T-02

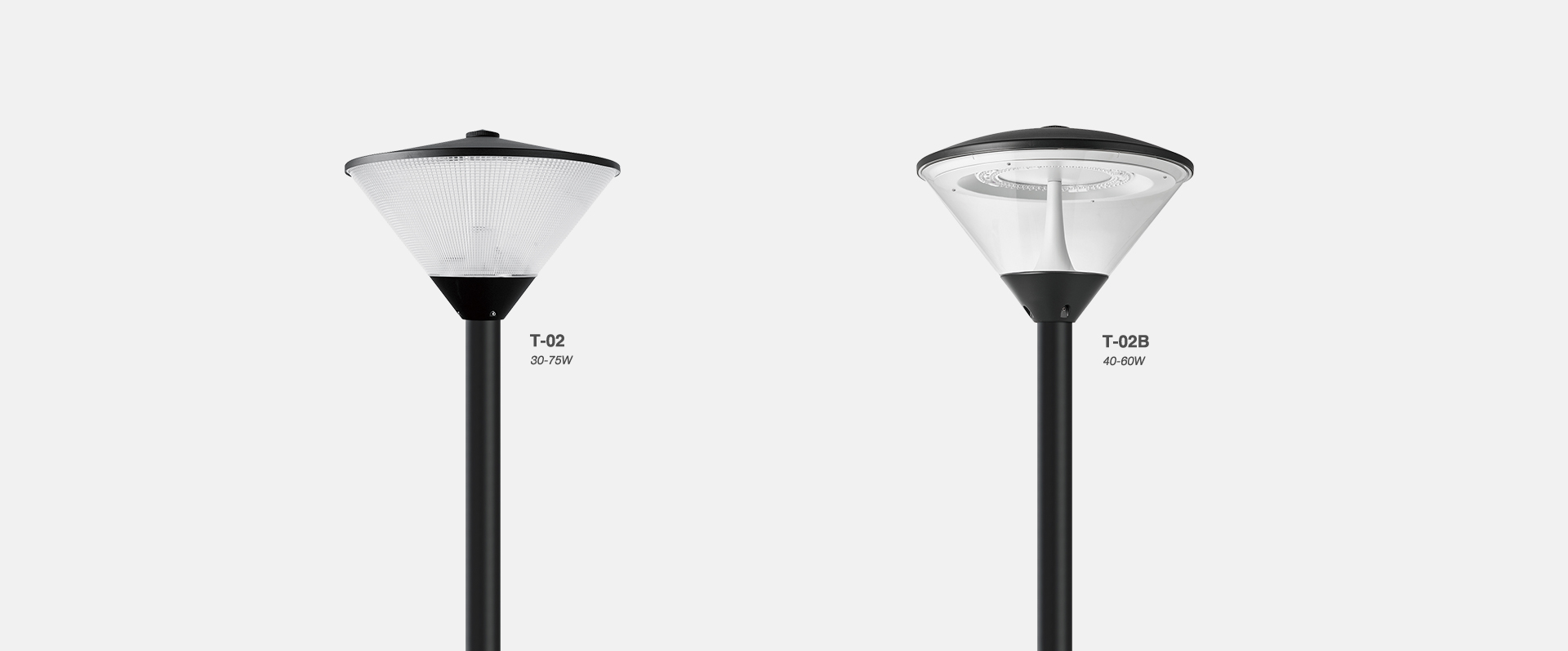

T-02

Description

  • Die-casting aluminium body, there are PC transparent diffuser and PC prism transparent diffuser optional.
  • Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • High quality LED chips, Driver with 0-10V/DALI/programmed options, and with surge protection up to 20KV.
  • There are two different configuration: Moduler and module lens with light source circle are arranged in a circular form.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • Street lighting control used with smart control technology. It can be compatible with remote management system.
  • All external screws are made of 304 stainless steel.
Lamp power: 30-75W
Output lumen:  3750-9300LM
Installation method： Vertical mounting
Color temperature option: 3000K/4000K
IP grade:  IP65
IK level: IK09
Installation pipe diameter: Ø60/Ø76mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric
