TG-12 Led Outdoor Lighting

Description

  • Die-casting aluminium body, super white tempered glass. Special shape design, it has 2 sizes version options.
  • Optics with PC lens with high visual comfortable and good anti glare effect, multiple light distribution options.
  • High quality LED chips, with ON-OFF/DALI/ DMX/RGBW programmed options.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, in accordance with EN 62471:2008.
  • All external screws are made of 304 stainless steel.
Lamp power: 9-25W
Output Lumens: 1080-3000LM
operation mode: AC 220V/DC 24V
Color temperature options: 3000K/4000K/5000K/5700K
Color rendering index: >80Ra/90Ra
Function options: ON-OFF/0-10V/DALI/DMX/RGBW
IP grade: IP66
IK level: IK09
Number of size:  2 size versions

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

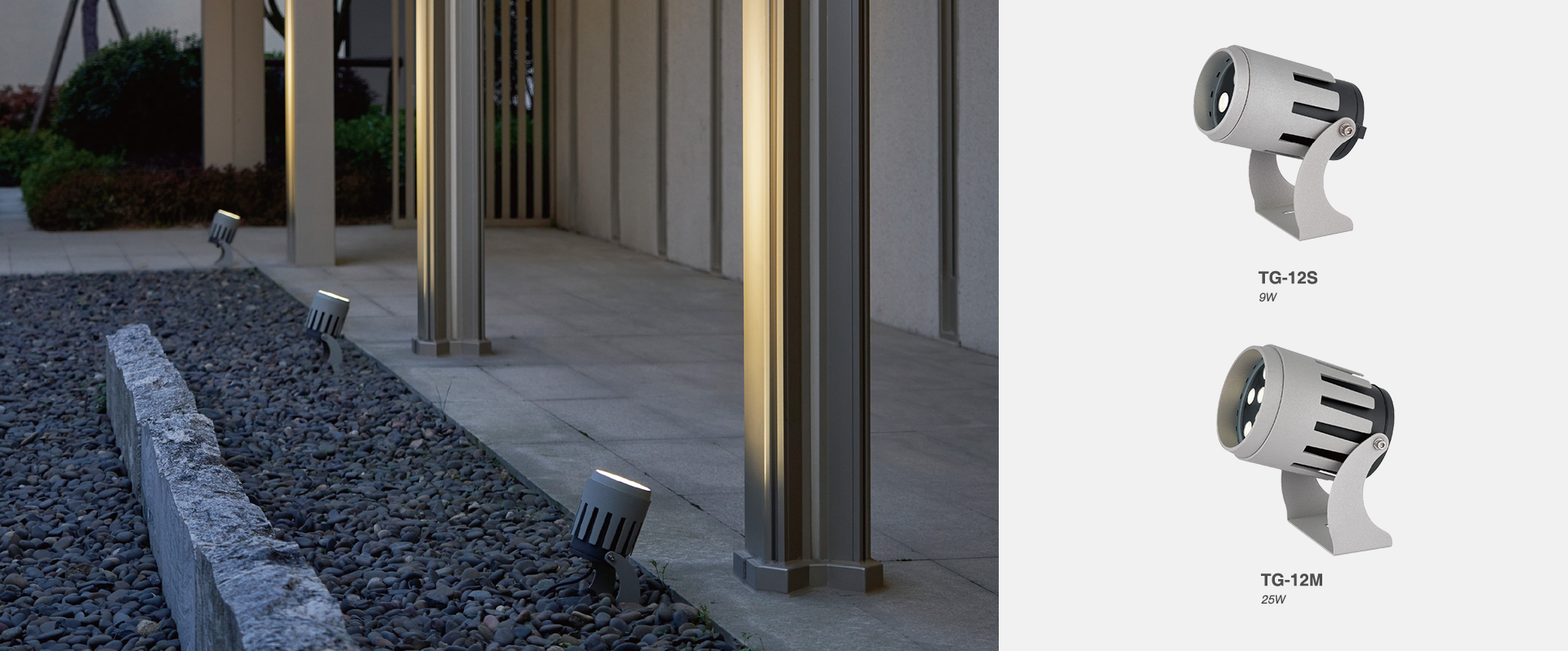

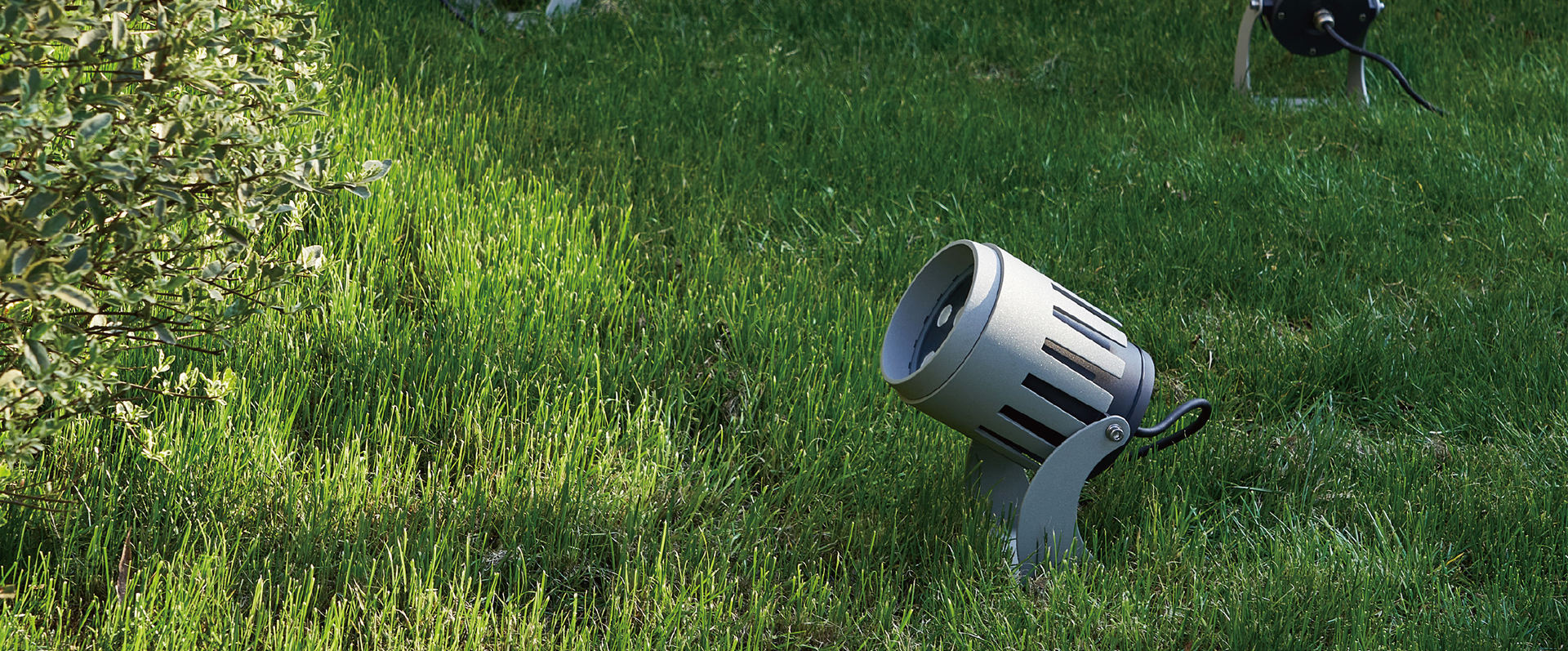

Application

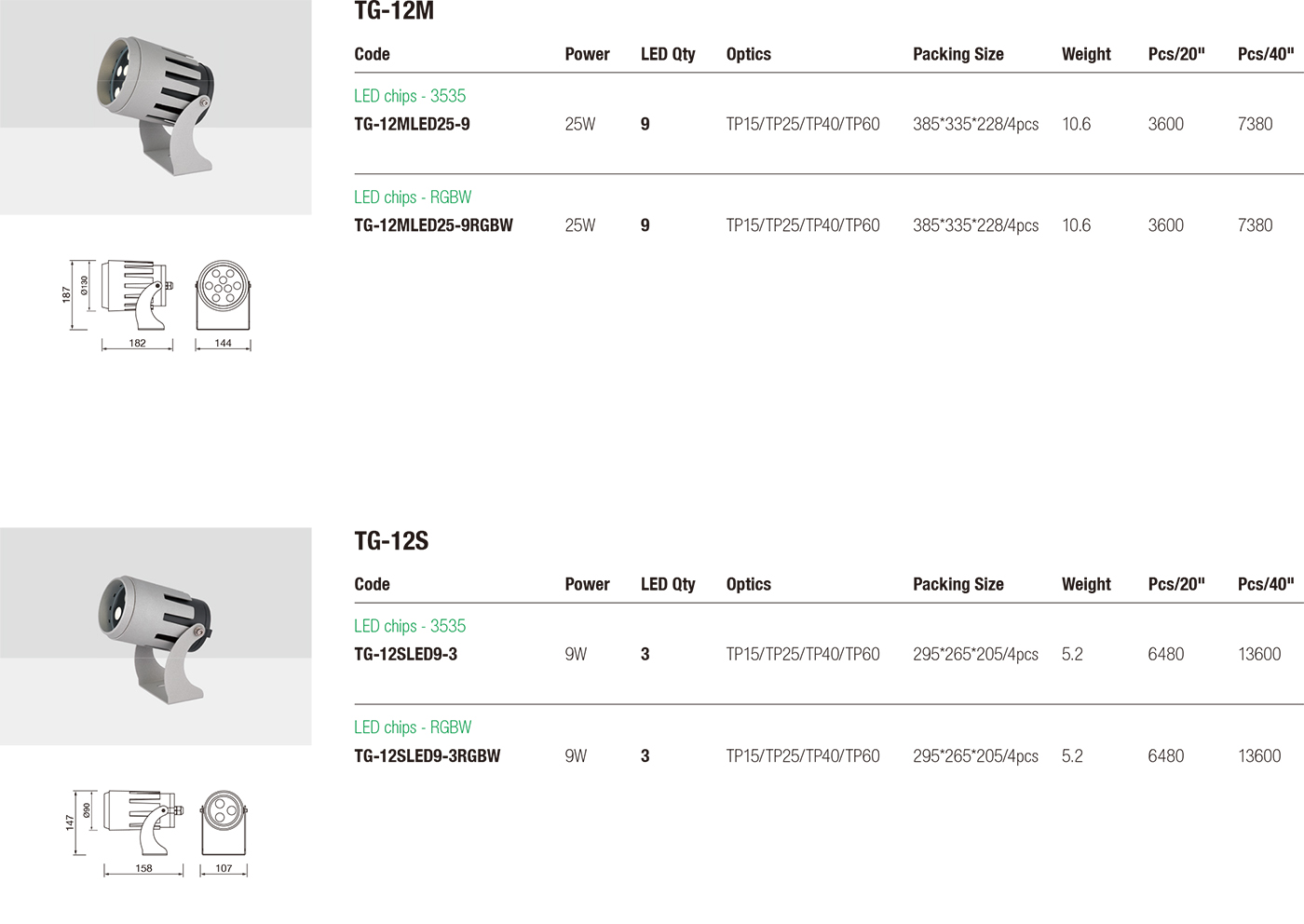

Technology data
