B-03 Led Outdoor Lighting

Description

  • The lighting body made by die-casting aluminium.
  • Super white tempered glass, with high visual comfort and uniform lighting distribution.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, in accordance with EN 62471:2008.
  • The maximum surface temperature of all accessible part under 50 degrees for safety and reliable.
Lamp power: 9/15W
Output Lumens: 716/1275LM
Light direction: Upper and lower bilateral/unilateral light output
DALI control: DALI control
Color temperature options: 3000K/4000K/Double colour temperature options
IP rating: IP66
IK Level: IK09
Lamp specifications: 2 size versions

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Application

Technology data

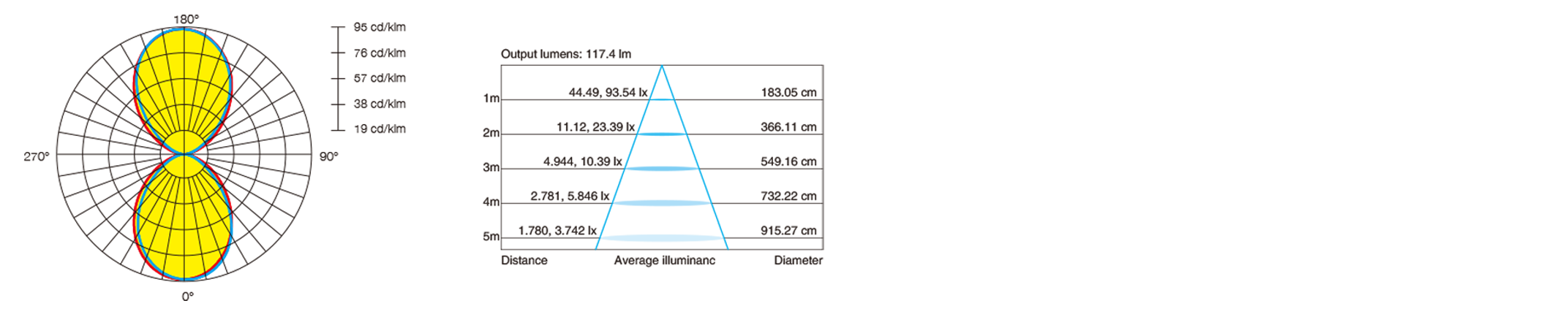

Optical application
