M-02

Description

  • Die-casting aluminium body, 304 stainess steel fram.
  • 10mm higher hardened temperated glass, it ensure pass IK10 standared test.
  • Mutiple optics options, it with high visual comfort and good anti glare effect.
  • High temperature resistant and waterproof silicone rubber ring, corrosion resistant PP plastic installion housing.
  • Floor/ground-mounted recessed luminaire intended applications as required, LED module the angle adjustable.
  • No photo-biological risk, in accordance with EN 62471:2008.
  • All external screw are made of 304 stainless steel.

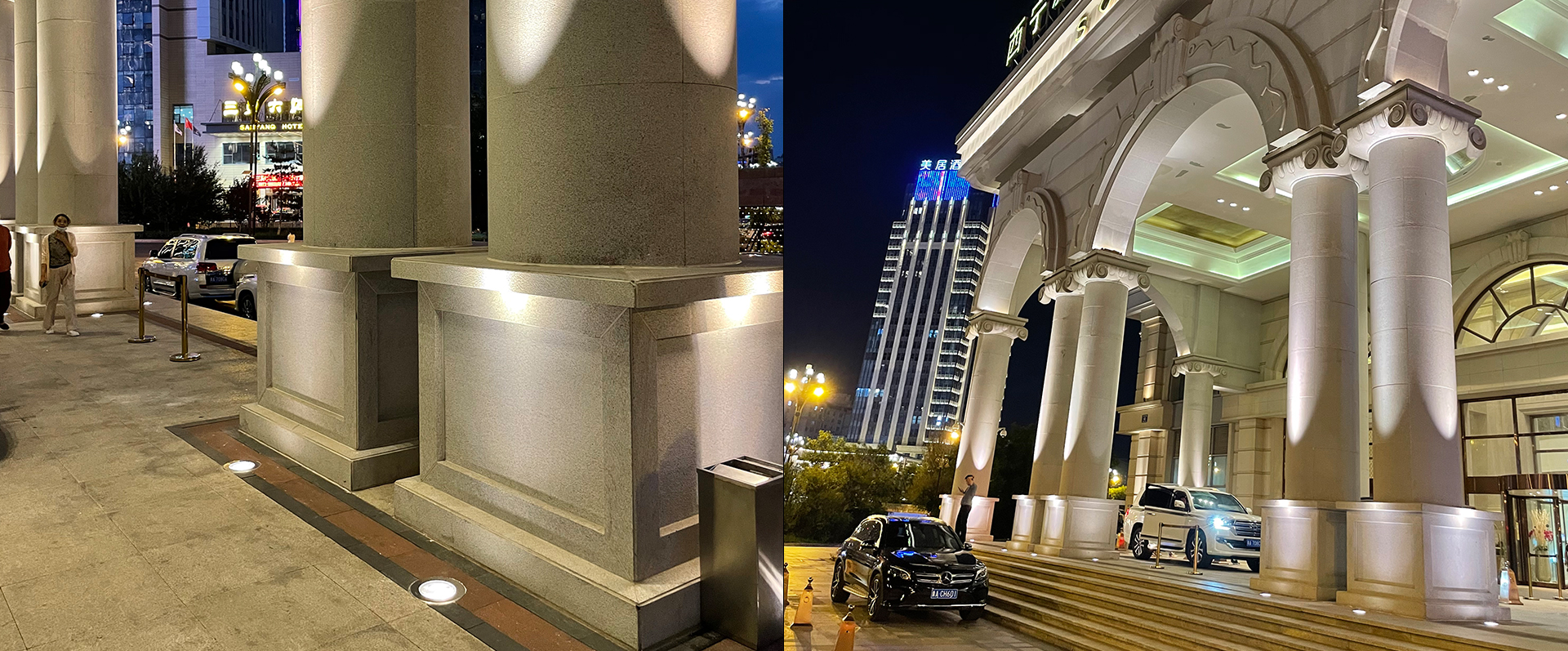

  • Applications: It can be used for landscape lighting places such assuch as courtyard, lawn, buildings, sculptures, signs and billboards etc
Power: 40-60W
Light flux LM: 4000-6000LM
CCT: 3000K / 4000K / RGBW
Options: Switch / DMX / DALI
Input volltage: DC 24V / AC 100-240V

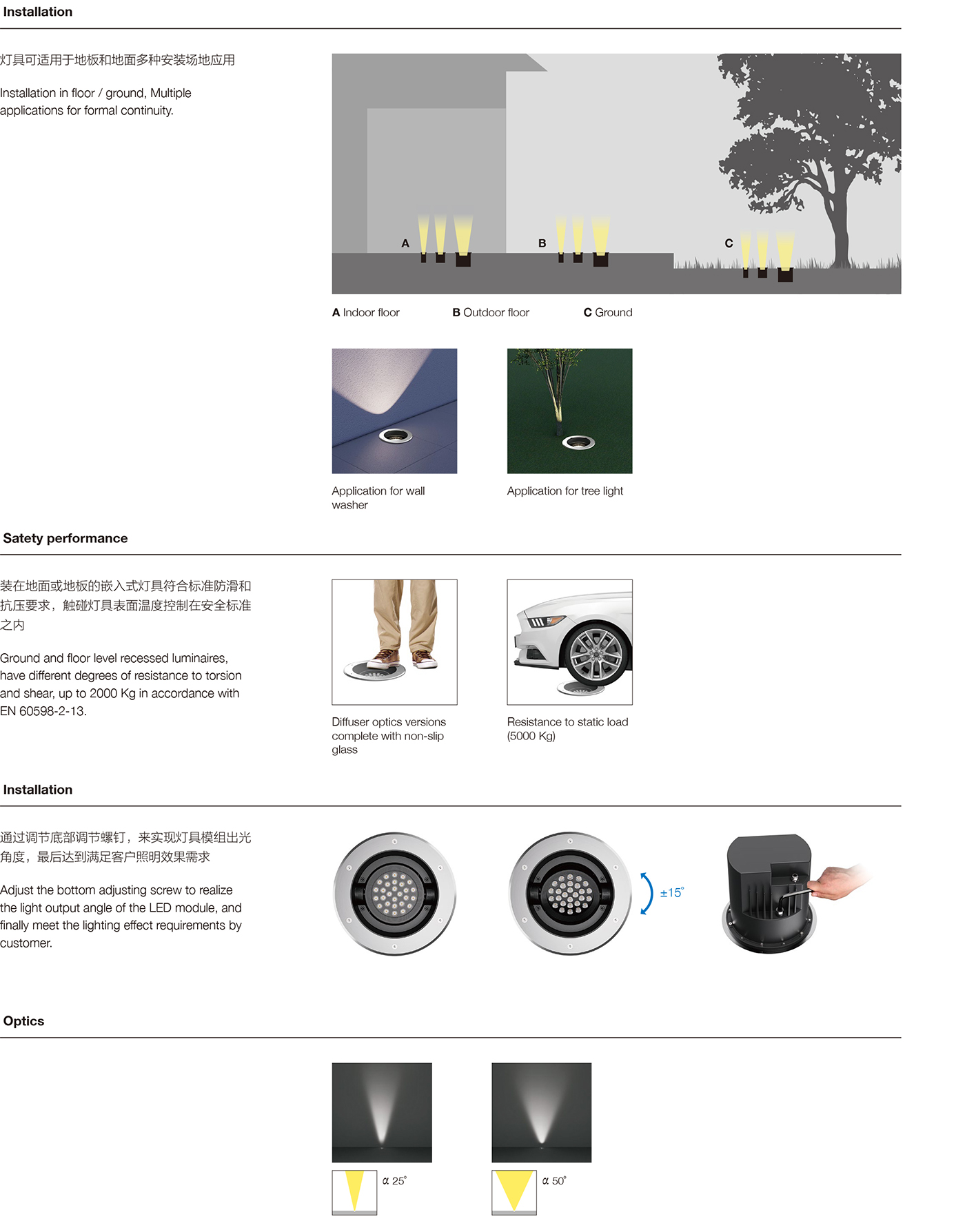

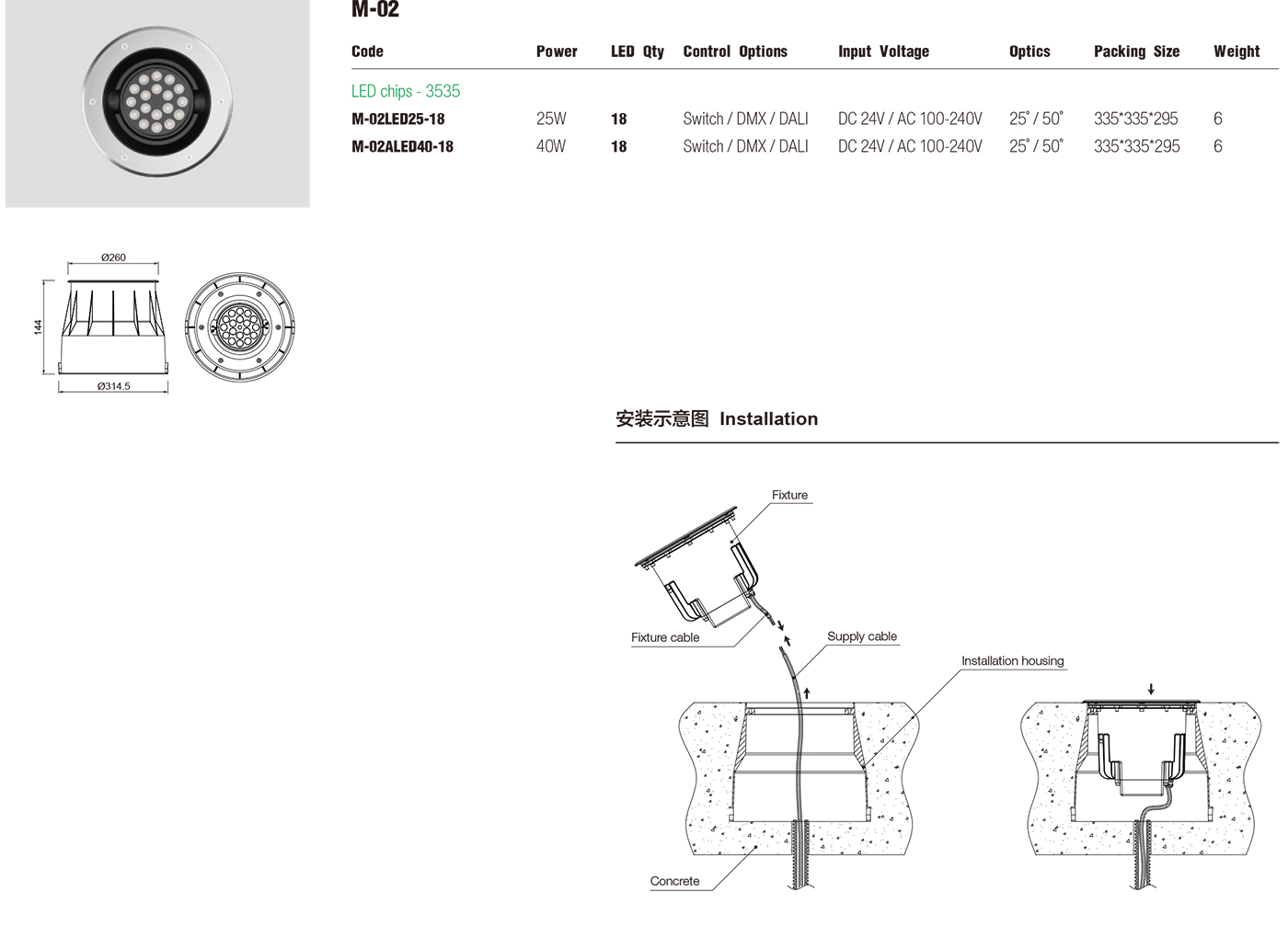

Installation method： Floor-mounted
Lengths (range cm) -

DOWNLOADS

Download Brochure Specification Installation Guide Photometric
