L-05 Led Outdoor Lighting

Description

  • Extrued aluminium body and flush end cover in die-casting complete with silicone gaskets.
  • Super white tempered glass, with high visual comfort and uniform lighting distribution.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • Wall and ceiling mount as well as support with adjustable arms.
  • Multiple optics be options, suitable for lighting requirements in different applications.
  • The maximum surface temperature of all contact temperature <50℃ for safety and reliable.
  • All external screw are made of 304 stainless steel.
  • The luminaire technical characteristics conform to EN 60598-1 standards.

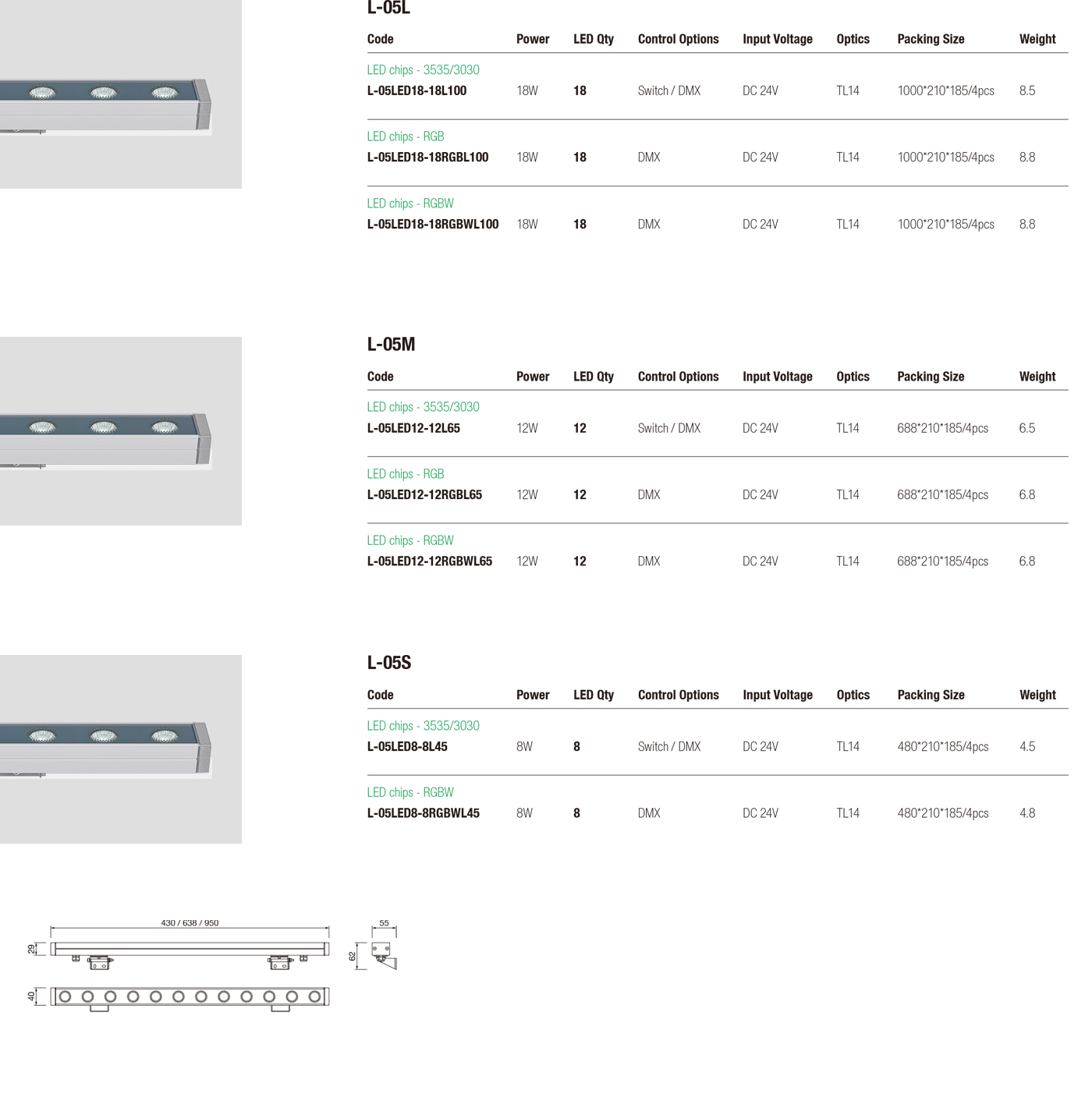

Power: 7W/12W/18W
Light flux LM: 665-1710LM
Nominal efficacy: 90-100 Lm/W (Ra80)
CCT: 2700K/3000K/4000K/RGBW
Options: Switch/DMX
Input volltage: DC 24V

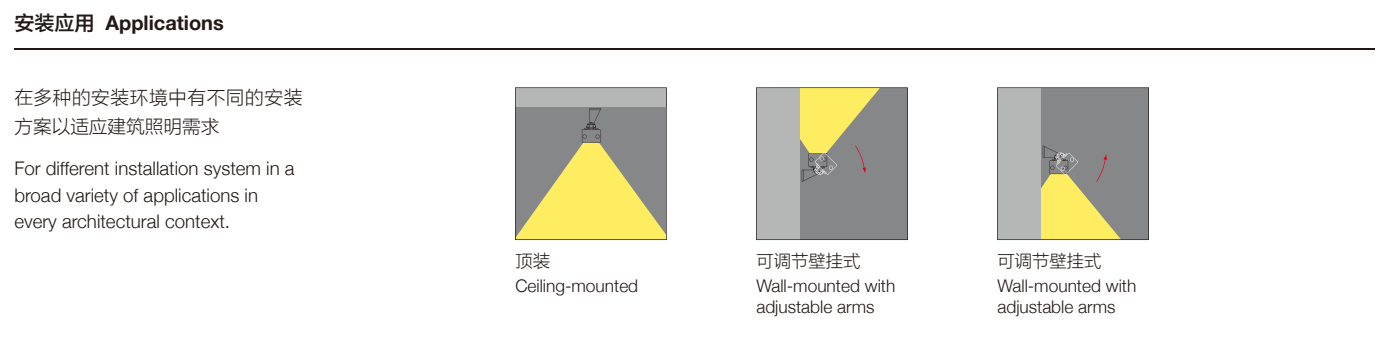

Installation method： Celling-mounted/Wall-mounted

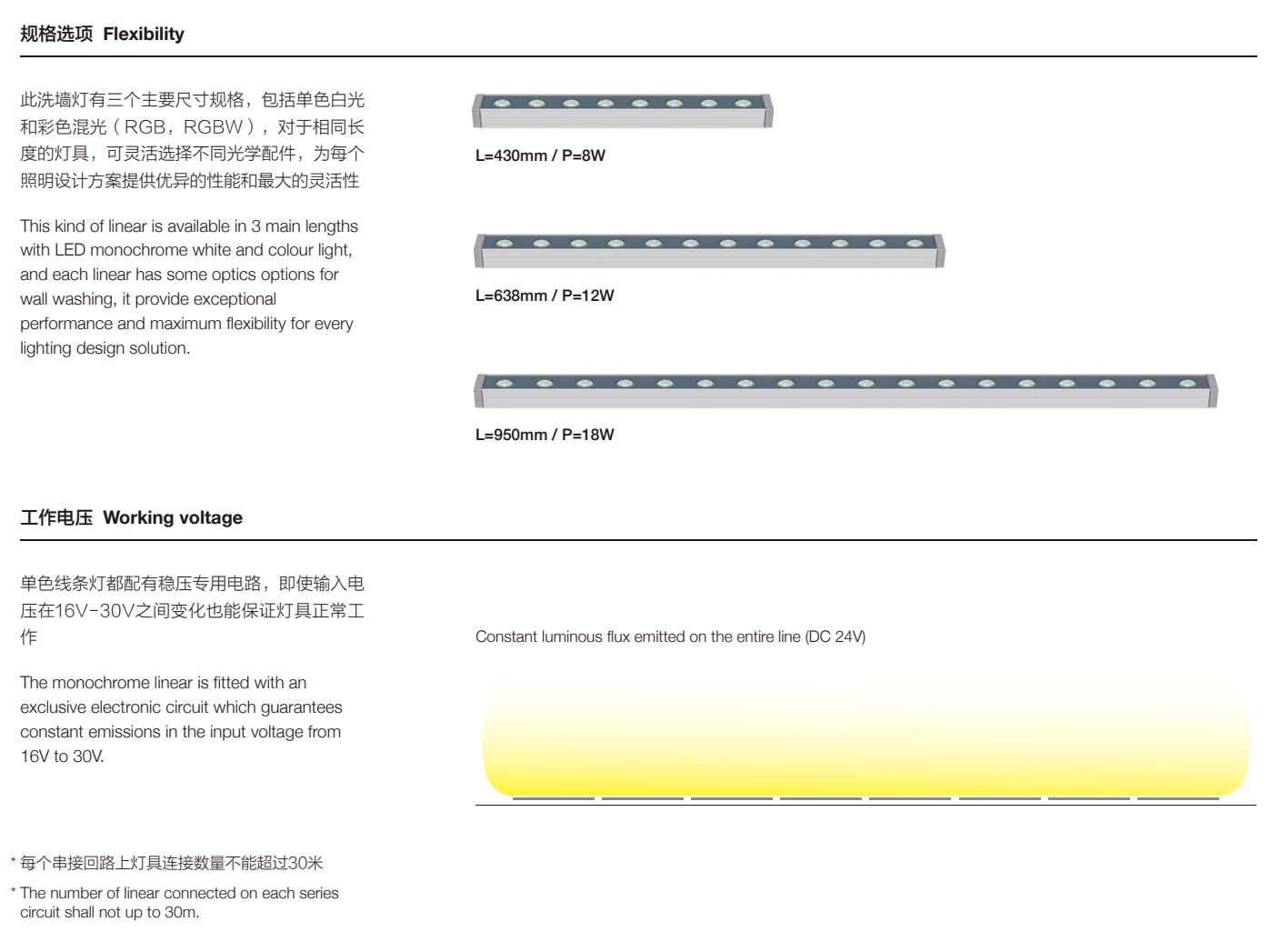

Lengths (range cm) 430mm/638mm/950mm

DOWNLOADS

Download Brochure Specification Installation Guide Photometric

Application

Technology data


Optical application
