• Die-casting aluminum alloy housing, the electrical box and light module adopt separate independent structure.
  • Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • The electrical box adopts unique design, safe and fast opening, and the overall protection is IP66.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • All external screws are made of 304 stainless steel
Lamp power: 40-480W
Output lumen:  5800-69000LM
Color temperature option: 3000K/4000K/5000K
Color rendering index: >70Ra/80Ra/90Ra
Function options: ON-OFF/0-10V/DALI/DMX/RGBW
IP grade:  IP66
IK level: IK08
Number of size:  4 size versions
Anti vibration level: Passed 100000 vibration tests on 5G/15HZ/3 shaft
Wind pressure test: >65M/S

Technology data

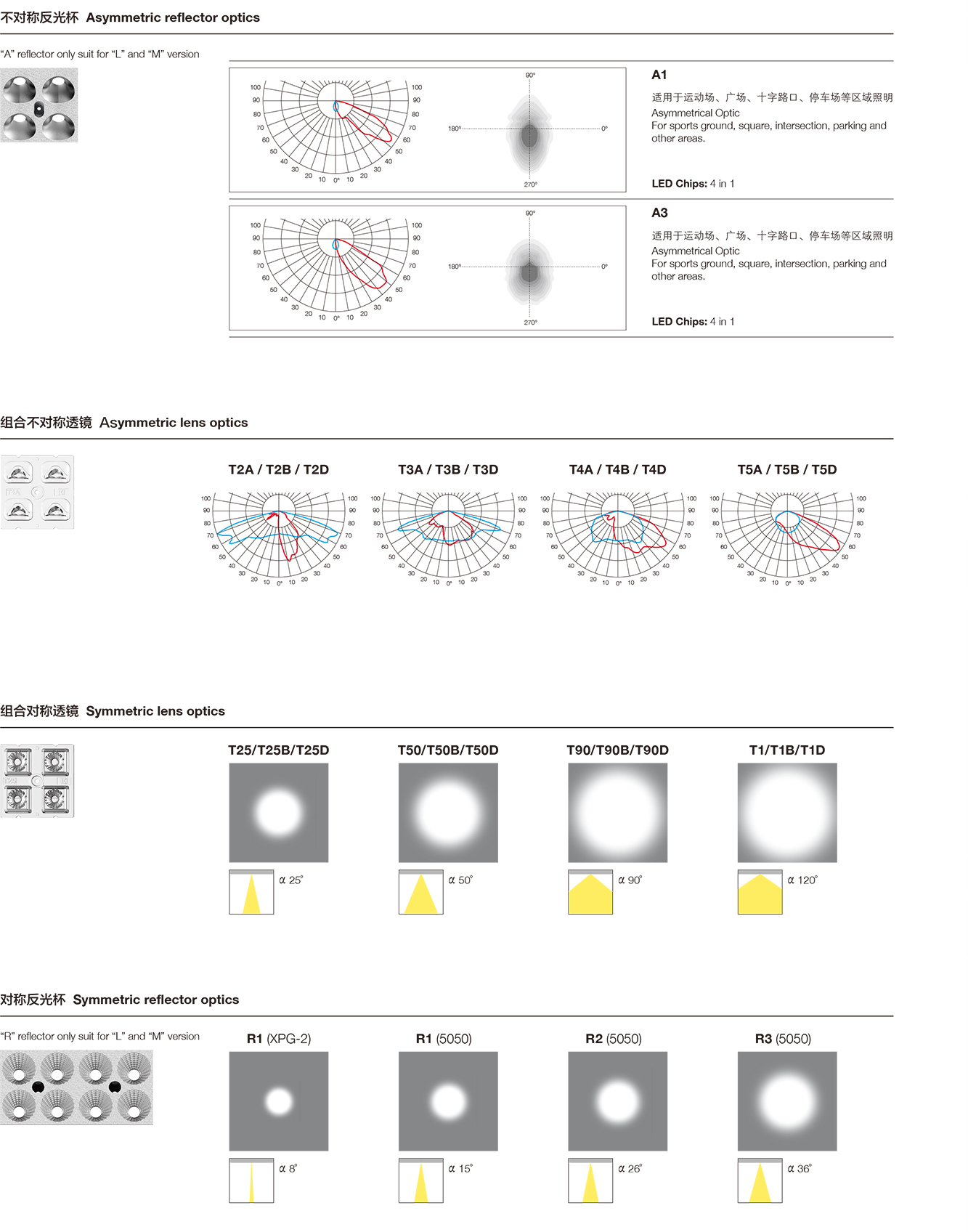

Optical application
