B-242 Led Outdoor Lighting

Description

  • Die-casting aluminium body, super white tempered glass, with high visual comfort and uniform lighting distribution.
  • High quality LED chips, Driver with 0-10V/DALI/programmed options.
  • LED module designed, Integrated components which is easy to install and replace.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • The maximum surface temperature of all accessible part under 50 degrees for safety and reliable.
  • Kled intelligent sensing equipment can automatically adjust the luminous flux output by monitoring pedestrian and traffic flow identification.
Lamp power: 12-25W
Output Lumens: 1132-2360LM
Light direction: Unilateral light output
DALI control: DALI control
Color temperature options: 3000K/4000K/Double colour temperature options
IP rating: IP65
IK Level: IK08

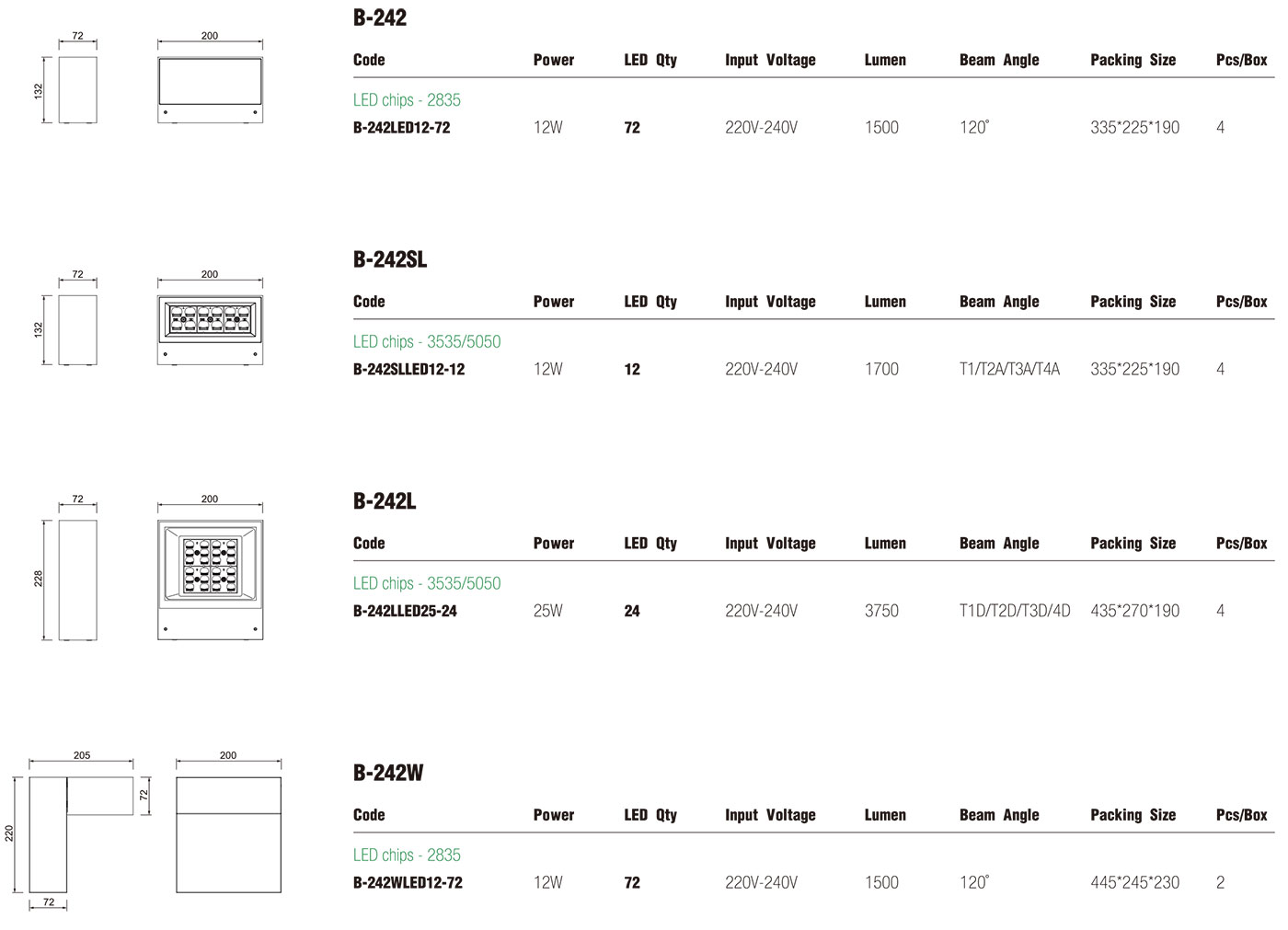

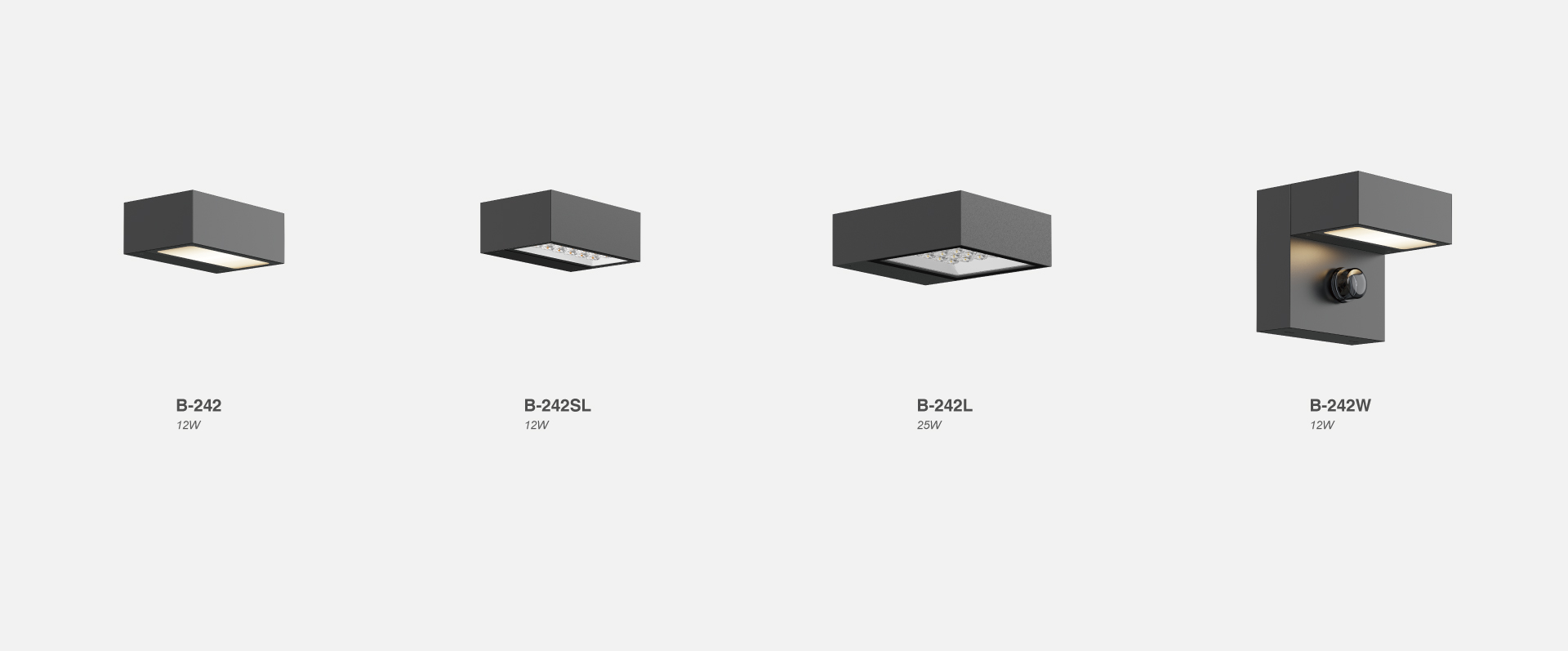

Lamp specifications: 2 size versions
Installation method： Wall-mounted

DOWNLOADS

Download Brochure Specification Installation Guide

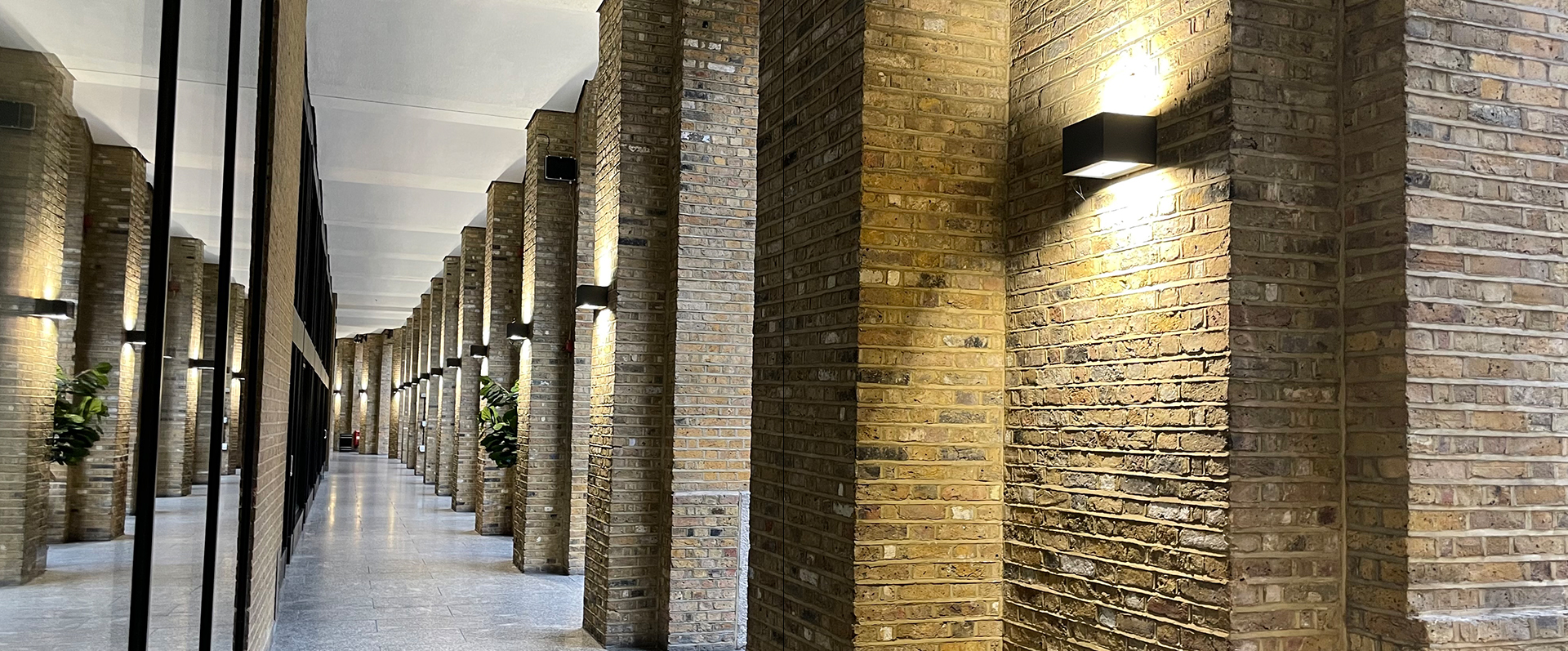

Application

Technology data

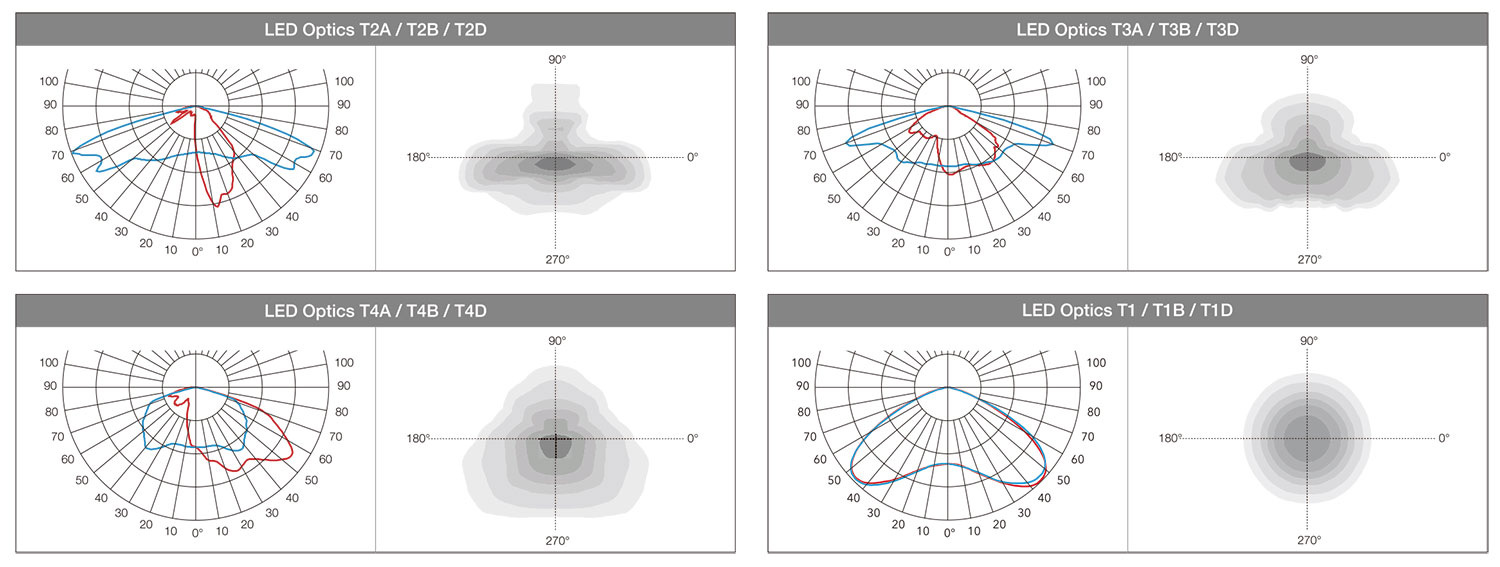

Optical application
