• The lighting radiator adopts 6063 profile,the electrical box and light adopt separate independengt structure.
  • Optics with lens design with high visual comfortable and uniform lighting distribution, multiple light distribution options.
  • The electrical box adopts unique design, safe and fast opening, and the overall protection is IP66.
  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • All external screws are made of 304 stainless steel.
Lamp power: 600-1500W
Output lumen:  93000-233000LM
Color temperature option: 4000K/5000K/5700K
Color rendering index: >70Ra/80Ra/90Ra
Function options: ON-OFF/0-10V/DALI/DMX/RGBW
IP grade:  IP66
IK level: IK09

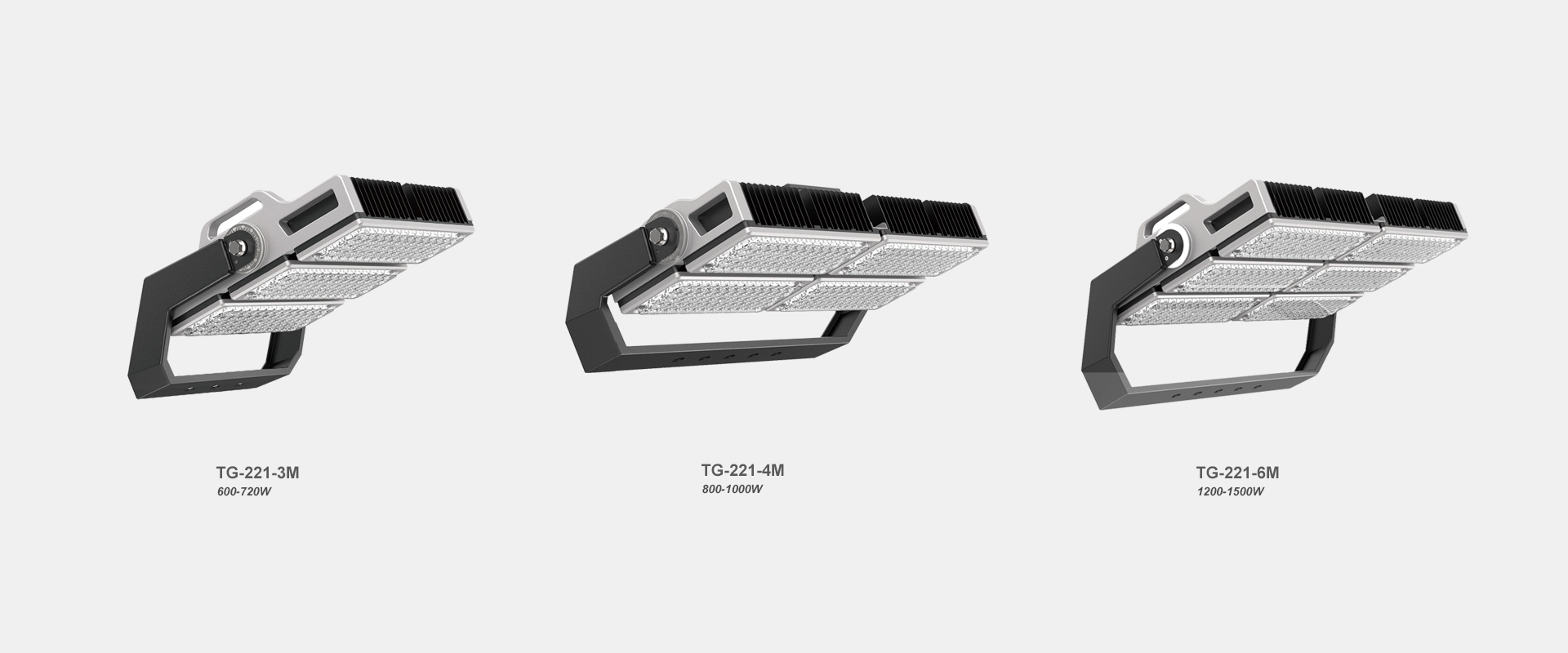

Lamp specifications: 3 size versions
Anti vibration level: Passed 100000 vibration tests on 5G/15HZ/3 shaft
Wind pressure test: >65M/S

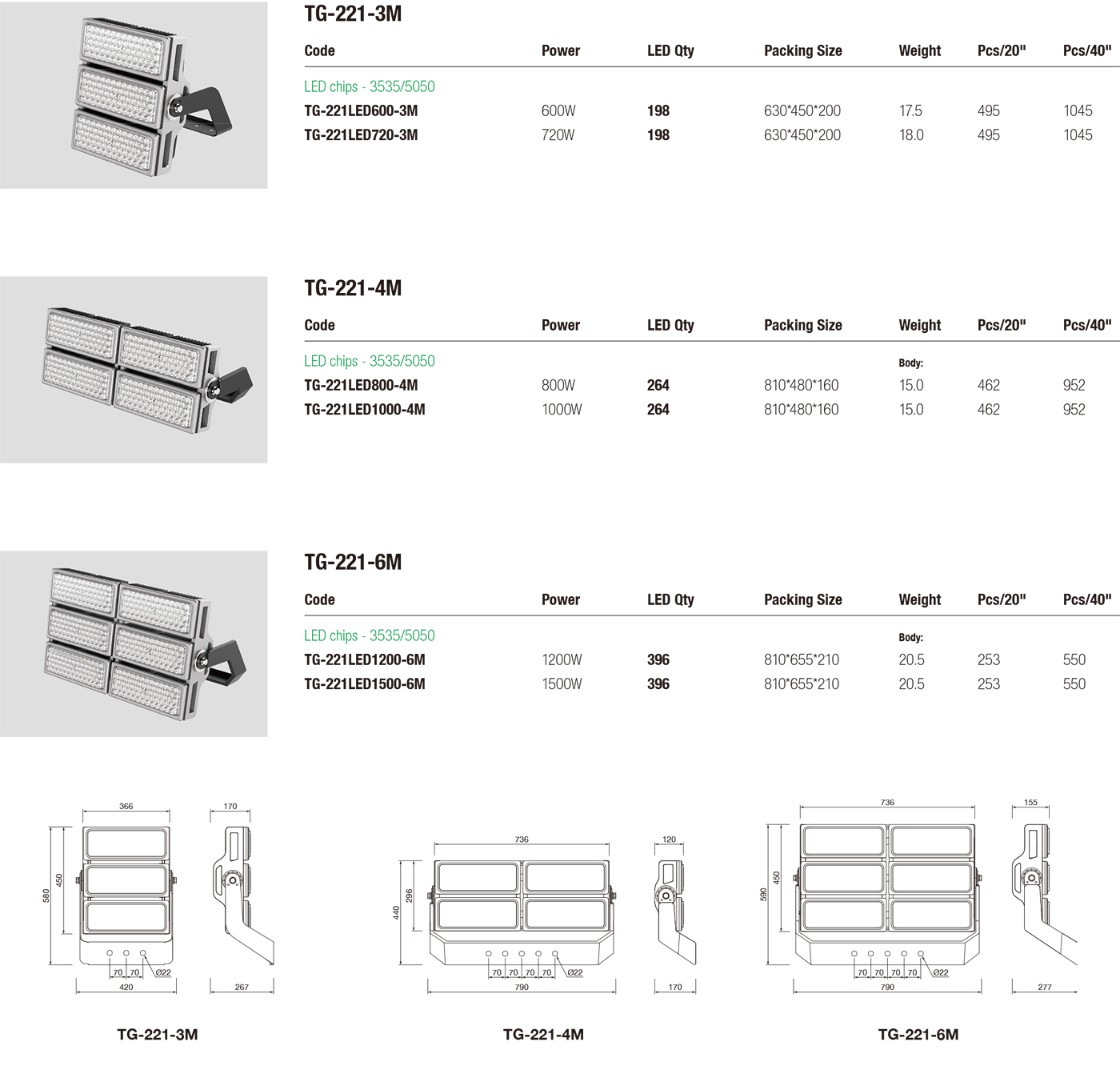

Technology data
